MCN Fleet: Triumph Tiger 1200 XCA - all about the engine

Published: 03 October 2018

The Tiger has its problems but they all melt away when you get the triple singing

It begins with a low and even rumble. Then it morphs into a wild animal, screeching and growling. Next comes the induction roar as it gulps in oxygen. Finally you reach the full fat screaming as the needle tickles the redline. Brrp goes the quickshifter and it all starts again. And again. And again because the noise cuts straight to the petrol drinking lunatic inside you who steals control of your right hand. It turns out that a 1200cc triple with 139bhp on tap is the star of the show. Who would have guessed? In hindsight, I should have.

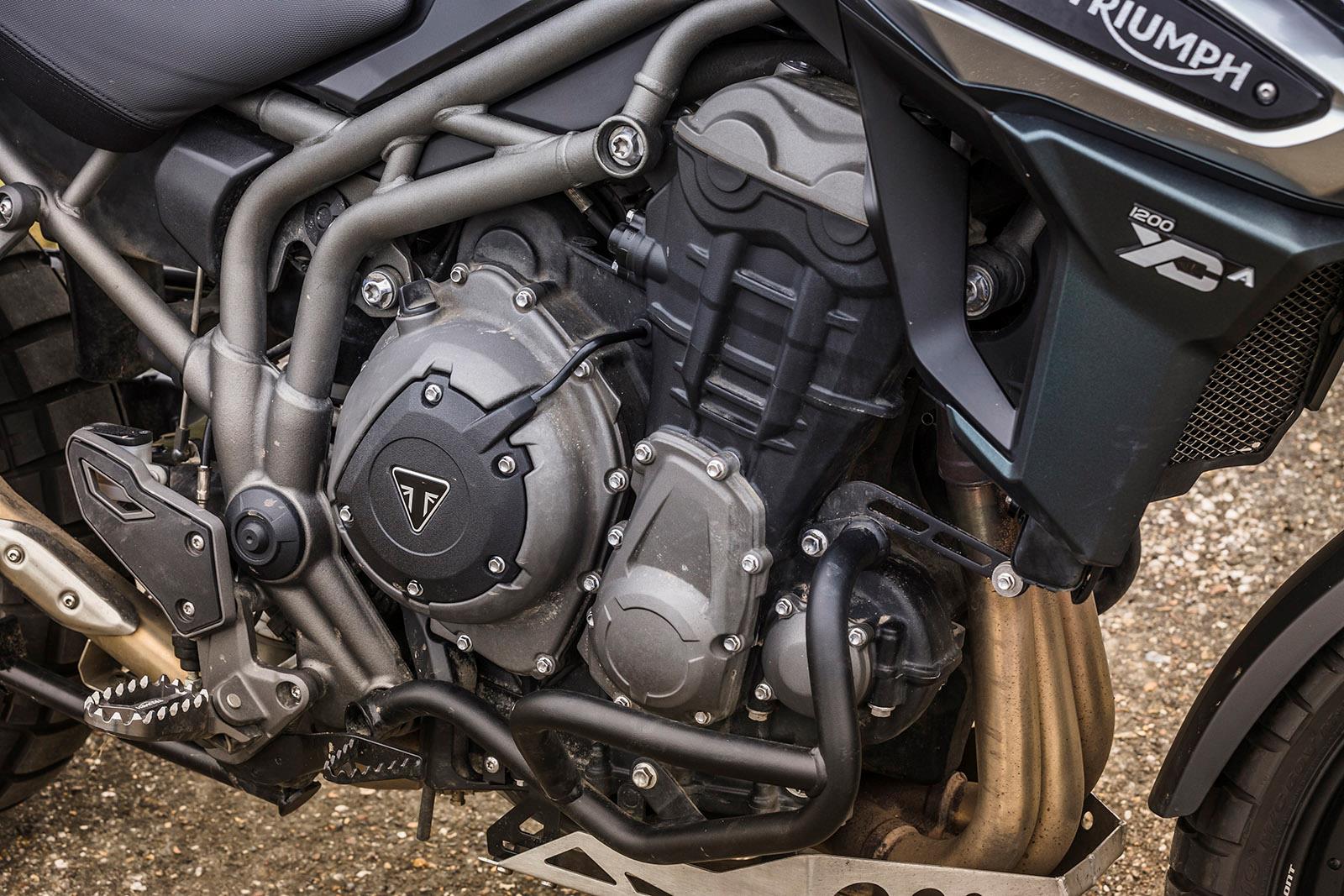

The clues were right there when Triumph first unveiled the bike. They made over 100 changes to the 1200 for 2018, including a lighter flywheel and crank. The new lighter internals enable the engine to spin up much faster than the old engine, which was smooth but felt like it was stuck in treacle at times. I don’t want to sound all gushing, but it really has made all the difference and the result is bloody brilliant.

Out on twisty A roads the engine is an absolute delight. If you want to take it easy you can cruise along in third and fourth, making ample progress on the 90ft lbs of torque. It even sounds great when you crack the throttle in the midrange too, with a hefty bark coming from the Arrow exhaust. If you’re up for it though, you can hold onto the gears right up to the redline, working that engine for all it’s worth. Because it’s got such long legs, you don’t have to hammer the gearbox like a maniac although when corners come thick and fast, the quickshifter/autoblipper is flawless. With the added benefit of a predictable electronic safety net, it’s some of the most carefree fun you can have on the road. But when you’re tired of all that and just need to get home, you can snick it into sixth, set the cruise control and relax into a relatively vibe free ride. The only thing that has let the engine down since day one is a juddering clutch, although Triumph tell me that this is a known issue affecting very early models that has since been rectified. Of the current crop of adventure bikes, it’s got the best engine by a country mile.

Sep 19 Update

Adventure bikes should be able to cope with big distances right? Well who better to test the mettle of these behemoths than one of the highest mileage riders in the office. With lots of trips around the UK, various off-road adventures plus a 190 mile round trip commute, I’ve clocked up over 11,000 miles since I first took the keys for the Tiger earlier this year. Amazingly the Tiger has 10,000 mile service intervals, so the bike took its first trip to the workbench in August. Here’s a list of everything that needed attention:



  • Clean front brake pads and calipers
  • Clean rear brake caliper and replace with new pads
  • Rear brake fluid bleed
  • Engine oil and filter change
  • Final drive oil level check
  • New spark plugs
  • New air filter
  • Throttle body butterfly plates clean
  • Engine adaptions check
  • ECM, Chassis and Instrument download tunes check
  • Fit New rear reflector
  • Wheel and tyre inspections and pressures set
  • Full safety check
  • Headstock bearings check
  • Top up coolant
  • Grease gear change pivots
  • Lubricate centre stand.
  • Road test
  • Quick wash

In short, there was nothing really to worry about mechanically – and it’s interesting to see Triumph checking up on the final drive oil – but cosmetically there are a few issues. Quite a few bolts have gone rusty at the rear end, despite various applications of ACF50 and the outside of the final drive itself it looking a little tired. The windscreen is really scratched up, despite my best efforts, as is the rear portion of the tank where it must catch my trousers slightly. Oddly the grips are showing quite a lot of wear too. Still I’ve seen a lot of bikes look a damn sight worse for 10k on the clocks…

The next service due is 20,000 miles, which is the big one with a valve check, but I doubt I’ll reach that by the end of the year.

August Update

What’s it like for shorties? Phil Morris

With the standard seat in the lowest position the seat height is 835mm, which is 33”. For 5’6” me that means I can just about get the balls of my feet down on both sides but I can’t flat foot it. This does mean that it requires a little more care and attention, especially around town as I can’t sit on it and shuffle it backwards. Triumph offer a 20mm lower seat for £305, or there’s always the XRx Low model that goes down to 790mm.

Is it as heavy as folk say? Tim Harvey

In short, yes. It’s a whopping 248kg dry, so in running order with a full tank it’s more like 275kg. Just hefting that off the sidestand is hard enough, never mind pushing it around or catching it if you have a little wobble. It’s made worse by the fact that the weight is high up too.

I’ve a 2012 Gen1 Explorer, should I trade up or stick? Gareth Barrett

Things have come a long way in the last six years. The XCa has a new engine, improved electronics, better brakes, electronic suspension, TFT dash plus a big power increase. There’s no doubting the new bike has some much more going on, it’s just that you pay for it in the price.

How is it at low speeds? Sean Warwick

The ride by wire throttle is an absolute delight, with no snatchiness anywhere. If you spend a long time in traffic, the clutch can get grabby when its hot and the radiator fan blows right into your crotch absolutely cooking you. For a big beast though, it’s quite civilised.

June 30

The upfront costs of modern bikes can be eye-watering and the Tiger 1200 is no exception but they hold their value well don’t they? Well the market leaders do. Three-year-old Tigers sell for roughly £8000, meaning they half in value, which costs you £2600 a year on average. Feeling a bit faint? Luckily the rest of the costs are a little more palatable.

Workshop wonder

The service schedules on modern engines never cease to amaze me and the Tiger 1200 is no exception. Once the 500 mile break-in service is out of the way, the first proper service isn’t due until 10,000 and even then it’s just fluids, filters and a throttle balance. Expect to pay around £350 for this plus any parts. The first really big service is due at 20,000 and that includes a valve check, new plugs and regreasing the headstock bearings, so expect to pay around £750 (more if the valves do require adjustment). Triumph say the oil in the final drive only needs to be swapped after break in, but after picking up the bill for a few shagged ones on BMWs, I’d err on the side of caution and ask for it to be swapped every 10,000 too. A few quid on oil could save you a fortune in the long run. As with all modern bikes, there’s also an annual service of to account for too, costing around £200. Assuming you do the average 4000 miles per year, expect servicing costs to work out at roughly £300-400 per year.

Fill ‘er up

In the most miraculous thing to have ever happened in bike tech, the MPG calculator is nearly spot on – just a shame the same can’t be said about the fuel gauge and range indicator. Because I’m peculiar (and tight) I tend to run a tank to the bitter end, which on average means I’ve ridden 210 miles for 18l of petrol averaging 53mpg. Not bad I’d say for such a behemoth. Two litres left is a bit annoying, especially since the reserve light comes on at 45 miles to go meaning you’ve really got around 70 to go.

Tyre me out

Tyres can make or break a bike. Cheap ones can ruin a ride and really bad ones often come bundled with a free trip along the tarmac. I quickly swapped the OEs for Pirelli Scorpion Rally STRs, which are a 70/30 on-road/off-road tyre. Unfortunately, a 248kg dry weight combined with a powerful 1200cc triple does meant that the tyres take a hammering, so the rears are past their best at 4000 miles. Assuming you’re getting one front for two rears and doing 4000 miles a year, tyres work out at £110 per year.

Verdict

If you’re Mr or Mrs Joe Average, riding a Tiger 1200 in an average fashion the first three years of ownership (not including insurance) will cost you around £10,565. Feeling faint again? That price doesn’t include any extras (fancy some luggage sir?) or dropping it off the side stand outside the café. I can’t say I’ve tried but I can’t help but think that buying an actual tiger would be cheaper…

Update July 7

Earlier in the year, I took the Tiger to the Wales 500, which was an off-road adventure rally event aimed at large capacity adventure bikes. The bike performed admirably, although not flawlessly, but we’ll get to that in a couple of weeks. What the ride did highlight though was a need for some easily accessible storage plus easy accessory charging. The Tiger has a couple of DIN plugs (one near the headstock and one by the passenger seat) but the placement makes them difficult to use for anything other than heated kit and leaves wires trailing everywhere. The solution for all my problems seemed to be a tank bag that has power and luckily, Givi lept to my rescue.

For what I need, the catchily named Givi GRT705 (£135) seems ideal. It’s a waterproof 20lt tankbag, with a removable base from their Gravel-T range. It’s aimed at big enduro bikes, or adventure bikes, and the adjustable base means it will fit pretty much anything (and was a simple five minute affair on the Triumph). The real genius of it comes when combined with the S110 and S111 power hub, which places a hub in the middle of the tank back that has three USB slots plus a 12v DC. The design means that it stays waterproof but can also be removed in a matter of seconds. I’ve only given it a brief whirl so far, but it’s an impressive piece of kit. I’ll follow this up with a full review once I’ve logged some miles on it.

At the same time as I fitted the tank bag, I also used the Tiger to transport a pair of Continental Classic Attack tyres back from the office to fit to my 1977 BMW R100/7. Thankfully it was a piece of cake because the Triumph luggage (also made by Givi) has a proper strap attachment points. It was simple a case of looping a tie-down strap around the tyres, through the top box loops and hooking it onto the pannier racks. In an age of cut down small super-nakeds, sometimes a bit adventure bike will lots of tie-down points is bloody useful.

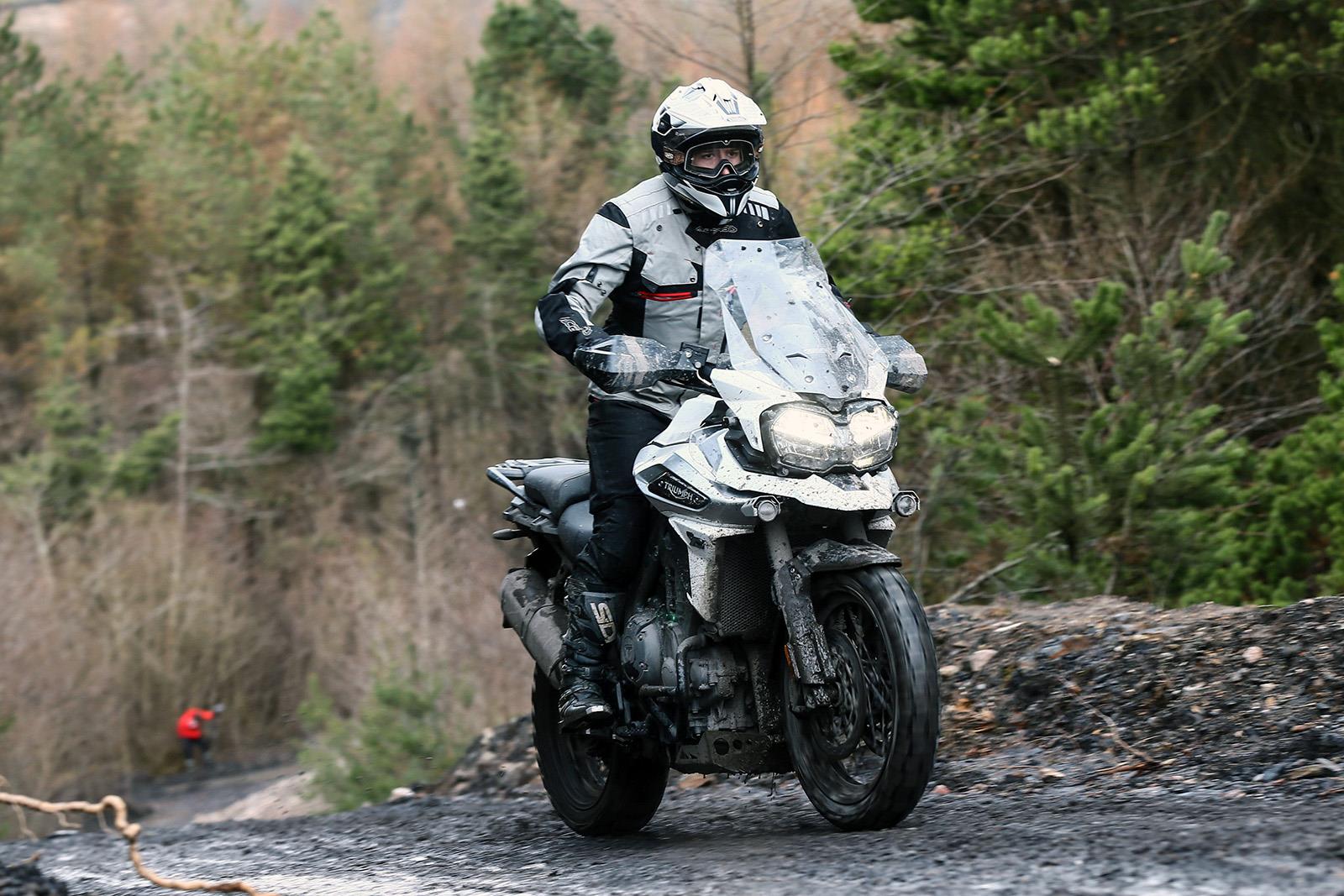

The 1200 XCA does a decent job off-road, once you get over its immense weight - April 2018

An adventure bike should be able to handle off-road riding reasonably well. If it can’t, then it’s basically just a tourer and the reality is that a purpose-made tourer is better at touring than a bad adventure bike is. Or so I think anyway. With that in mind, I spent a day at Triumph’s new Adventure Centre in Wales putting the XCA through its paces.

The first thing that strikes you, and never really escapes you, is that the Tiger is a hefty old beast. The second you lift it off the stand you can feel every kilo bearing down on you and once you head off-road it really makes its presence felt. You really have to bully the thing to get it to do what you want and once it runs away, steps out of line or begins to topple over it’s bloody hard work to bring it back. Conversely, the engine was a real revelation.

The flexible nature of the triple means it will pull from low down but it doesn’t run out of puff up top, so you can hold onto gears for a long time. In fact, I barely got the thing out of first gear all day, which if you’re new to off-roading is one less thing to worry about. It’s no doubt helped out by a great electronics package.

The XCA comes with two modes: Off-Road and Off-Road Pro. Off-Road turns off the rear ABS and allows the rear wheel to spin up a little but will still cut the power if needed, whereas Off-Road Pro basically just turns everything off. The masterstroke is that Triumph allow you to alter things within the modes, so you can dial things in just how you want. The one flop of the electronics is that if you kill the ignition (after falling off say…) then it resets back to road mode. Then when you remount and ride off again, it promptly cuts the power and you make your second trip to the floor inside 30 seconds. Unfortunately, for me, I made this discovery twice. Triumph, sort it out…

Verdict

The XCA just about earns its adventure name. For such a tank, it’s surprisingly adept off-road and can tackle terrain you might not imagine. Unfortunately, the rivals from BMW and KTM are much handier off-road, simply because of their weight advantage. If you’re a road rider that might tackle the odd gravel track you’ll get on well with the Tiger but if you’re an off-roader on the lookout for an adventure bike, you’ll be better spending your money elsewhere.

Electronics – Hit

Off-Road mode allows you to tackle pretty much everything and feel like a hero with a decent safety net behind you. It’s the adjustability that won me over – in the end, I opted for Off-Road Pro but with the front ABS turned on and the throttle in ‘Rain Mode’ to calm down the power delivery.

Weight – Miss

The XCA weighs a whopping 248kg done dry, which is outrageous considering a BMW R1200GSA is 263kg with 30l of fuel while a KTM 1290 Super Adventure R is just 217kg dry. The weight is high up too, exacerbating the problem.

Suspension – Miss

The suspension does a decent job most of the time but as soon as you drop off anything or the wheels leave the ground, it absolutely crashes back down to earth. Once again it comes up short with 190mm of travel compared to 210mm on the BMW and 220mm on the KTM.

Tech Spec

  Triumph Tiger 1200 XCA
Engine 1215cc  Triple
Power 139bhp 9350 rpm
Torque 90ftlb 7600 rpm
Weight 248kg (kerb)
Fuel 20l 210mi range
Front suspension Electronic WP 48mm USD forks 190mm travel
Rear suspension Electronic WP monoshock 193mm travel
Price £16,950
PCP £176 x 36
Hire Purchase £406 x 36
